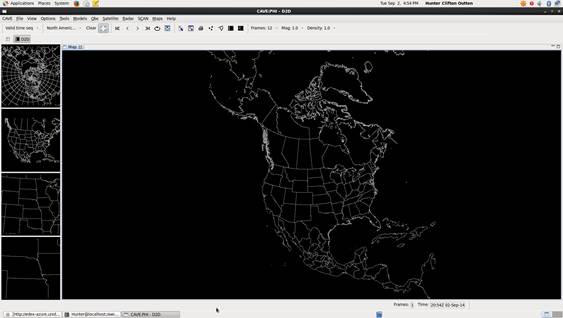

The scalesInfo.xml file refers to other XML files such as Regional.xml, which have a bundle element as the root. If you want to create different maps than the default, in general, follow the same format as the existing XML files (scalesInfo.xml, Regional.xml, etc.). You can use the “Map Projection” tool in CAVE to create new map bundles. Save the new map bundles as XML files. Save the new map bundles to the same location as Regional.xml (and the other XML files). Modify scalesInfo.xml to refer to your new map bundle XML files. Joe Barrett Weather Decision Technologies Norman, OK From: Brian Bernard [mailto:brian.brianbernard@xxxxxxxxx] Sent: Tuesday, September 02, 2014 5:59 PM To: Joe H. Barrett Subject: Re: [awips2-users] WFO localization Hi Joe, I hope you don't mind me asking a question within this thread you and Hunter are having. Joe, I've followed the instructions you provided to Hunter, though in my case I'm using BUF, instead. I live near Toronto, Ontario and that's why I'm using Buffalo. The question I have is this, do the maps have to be saved as a Bundle? After following your instructions I keep getting the same OAX maps in D2D instead of the maps I created. I modified the scalesInfo.xml file and copied it to the proper location. Brian Bernard www.goldenhorseshoeweather.com<http://www.goldenhorseshoeweather.com> On Tue, Sep 2, 2014 at 5:05 PM, Joe H. Barrett <jbarrett@xxxxxxxxxx<mailto:jbarrett@xxxxxxxxxx>> wrote: You basically want to “clone” the OAX localization to PHI, by copying all of the …site/OAX directories to …site/PHI. Then, start modifying the files in the …/PHI directories. For example, you can modify the scalesInfo.xml file to point to locally-defined maps. After cloning OAX, restart CAVE, and you should see all of the localizations in the preference settings, including OAX and PHI. Select PHI, and restart CAVE. Joe Barrett Weather Decision Technologies, Inc. Norman, OK From: awips2-users-bounces@xxxxxxxxxxxxxxxx<mailto:awips2-users-bounces@xxxxxxxxxxxxxxxx> [mailto:awips2-users-bounces@xxxxxxxxxxxxxxxx<mailto:awips2-users-bounces@xxxxxxxxxxxxxxxx>] On Behalf Of Hunter Outten Sent: Tuesday, September 02, 2014 3:56 PM To: awips2-users@xxxxxxxxxxxxxxxx<mailto:awips2-users@xxxxxxxxxxxxxxxx> Subject: Re: [awips2-users] WFO localization you can see that the cave is set to PHI but still has OAX lo[cid:image001.jpg@01CFC6D9.04D5FF50] calization On Tue, Sep 2, 2014 at 4:48 PM, Hunter Outten <delmarvawx@xxxxxxxxx<mailto:delmarvawx@xxxxxxxxx>> wrote: On original setup i used the OAX office. i am trying to switch to another office. i went through the preferences to place as PHI but i still am stuck on cave seeing the OAX office regions and localization. It will not force its way over to the other office through CAVE. Do i have to reinstall CAVE? -- [http://img62.imageshack.us/img62/1071/32075436705027888717816.jpg] ~Hunter Clifton Outten~ Pattern Cycle Theory Creator Accuweather.com Astronomy 570-250-4530<tel:570-250-4530> -- [http://img62.imageshack.us/img62/1071/32075436705027888717816.jpg] ~Hunter Clifton Outten~ Pattern Cycle Theory Creator Accuweather.com Astronomy 570-250-4530<tel:570-250-4530> _______________________________________________ awips2-users mailing list awips2-users@xxxxxxxxxxxxxxxx<mailto:awips2-users@xxxxxxxxxxxxxxxx> For list information, to unsubscribe, or change your membership options, visit: http://www.unidata.ucar.edu/mailing_lists/
