[awips2-users] AWIPS 17.1.1 Issues

• To: "awips2-users@xxxxxxxxxxxxxxxx" <awips2-users@xxxxxxxxxxxxxxxx>
• Subject: [awips2-users] AWIPS 17.1.1 Issues
• From: Victor Alvarez <vic_alvarez05@xxxxxxxxx>
• Date: Sun, 23 Jul 2017 23:22:30 +0000 (UTC)

Hello,

Upon firing up AWIPS, I receive a keybinding conflict error & "Paint error:
Error compiling geometry:: The recourse [State/County Boundaries] has been
disabled." I receive this similar error when loading up pretty much everything
else. I noticed Brian had a similar issue but fixed it by deleting the caveData
directory. However, he followed up days later with the same complaint. Anyhow,
this did not fix my issue, and neither did a fresh install, yum update, change
of server, you name it. Any help would be greatly appreciated, thanks! Below I
will attach a few files.

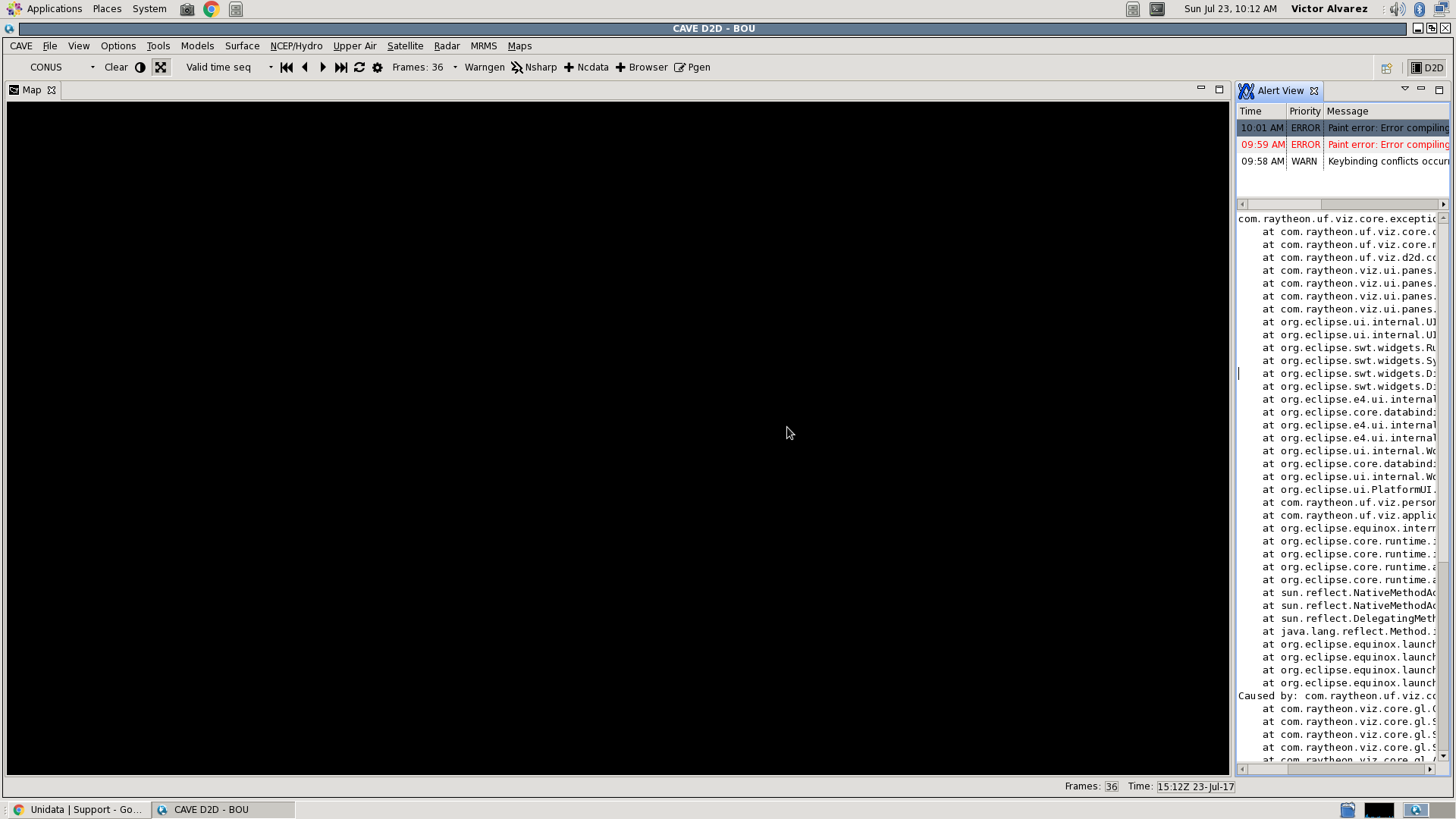

Attachment: U3.png
Description: PNG image

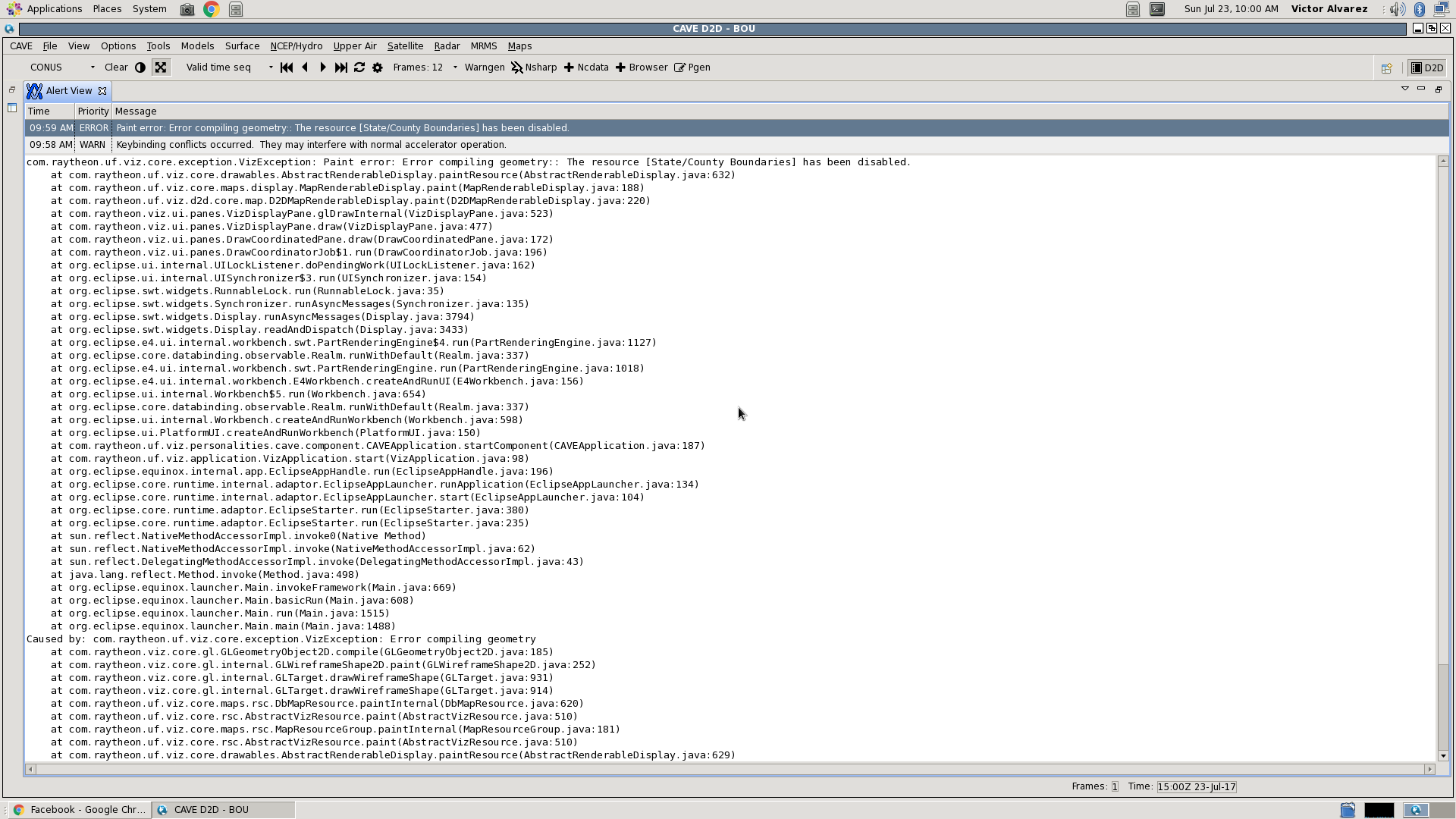

Attachment: U1.png
Description: PNG image

# Written by com.raytheon.uf.viz.alertview 1.15.0.2017071410
ERROR 2017-07-23 10:01:29,140 Paint error: Error compiling geometry:: The
resource [NEXRCOMP DHR ] has been disabled.
com.raytheon.uf.viz.core.exception.VizException: Paint error: Error compiling
geometry:: The resource [NEXRCOMP DHR ] has been disabled.
        at
com.raytheon.uf.viz.core.drawables.AbstractRenderableDisplay.paintResource(AbstractRenderableDisplay.java:632)
        at
com.raytheon.uf.viz.core.maps.display.MapRenderableDisplay.paint(MapRenderableDisplay.java:188)
        at
com.raytheon.uf.viz.d2d.core.map.D2DMapRenderableDisplay.paint(D2DMapRenderableDisplay.java:220)
        at
com.raytheon.viz.ui.panes.VizDisplayPane.glDrawInternal(VizDisplayPane.java:523)
        at
com.raytheon.viz.ui.panes.VizDisplayPane.draw(VizDisplayPane.java:477)
        at
com.raytheon.viz.ui.panes.DrawCoordinatedPane.draw(DrawCoordinatedPane.java:172)
        at
com.raytheon.viz.ui.panes.DrawCoordinatorJob$1.run(DrawCoordinatorJob.java:196)
        at
org.eclipse.ui.internal.UILockListener.doPendingWork(UILockListener.java:162)
        at org.eclipse.ui.internal.UISynchronizer$3.run(UISynchronizer.java:154)
        at org.eclipse.swt.widgets.RunnableLock.run(RunnableLock.java:35)
        at
org.eclipse.swt.widgets.Synchronizer.runAsyncMessages(Synchronizer.java:135)
        at org.eclipse.swt.widgets.Display.runAsyncMessages(Display.java:3794)
        at org.eclipse.swt.widgets.Display.readAndDispatch(Display.java:3433)
        at
org.eclipse.e4.ui.internal.workbench.swt.PartRenderingEngine$4.run(PartRenderingEngine.java:1127)
        at
org.eclipse.core.databinding.observable.Realm.runWithDefault(Realm.java:337)
        at
org.eclipse.e4.ui.internal.workbench.swt.PartRenderingEngine.run(PartRenderingEngine.java:1018)
        at
org.eclipse.e4.ui.internal.workbench.E4Workbench.createAndRunUI(E4Workbench.java:156)
        at org.eclipse.ui.internal.Workbench$5.run(Workbench.java:654)
        at
org.eclipse.core.databinding.observable.Realm.runWithDefault(Realm.java:337)
        at
org.eclipse.ui.internal.Workbench.createAndRunWorkbench(Workbench.java:598)
        at org.eclipse.ui.PlatformUI.createAndRunWorkbench(PlatformUI.java:150)
        at
com.raytheon.uf.viz.personalities.cave.component.CAVEApplication.startComponent(CAVEApplication.java:187)
        at
com.raytheon.uf.viz.application.VizApplication.start(VizApplication.java:98)
        at
org.eclipse.equinox.internal.app.EclipseAppHandle.run(EclipseAppHandle.java:196)
        at
org.eclipse.core.runtime.internal.adaptor.EclipseAppLauncher.runApplication(EclipseAppLauncher.java:134)
        at
org.eclipse.core.runtime.internal.adaptor.EclipseAppLauncher.start(EclipseAppLauncher.java:104)
        at
org.eclipse.core.runtime.adaptor.EclipseStarter.run(EclipseStarter.java:380)
        at
org.eclipse.core.runtime.adaptor.EclipseStarter.run(EclipseStarter.java:235)
        at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
        at
sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
        at
sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
        at java.lang.reflect.Method.invoke(Method.java:498)
        at org.eclipse.equinox.launcher.Main.invokeFramework(Main.java:669)
        at org.eclipse.equinox.launcher.Main.basicRun(Main.java:608)
        at org.eclipse.equinox.launcher.Main.run(Main.java:1515)
        at org.eclipse.equinox.launcher.Main.main(Main.java:1488)
Caused by: com.raytheon.uf.viz.core.exception.VizException: Error compiling
geometry
        at
com.raytheon.viz.core.gl.GLGeometryObject2D.compile(GLGeometryObject2D.java:185)
        at
com.raytheon.viz.core.gl.SharedCoordMap$SharedCoordinates.<init>(SharedCoordMap.java:102)
        at
com.raytheon.viz.core.gl.SharedCoordMap$SharedCoordinates.<init>(SharedCoordMap.java:95)
        at com.raytheon.viz.core.gl.SharedCoordMap.get(SharedCoordMap.java:134)
        at
com.raytheon.viz.core.gl.AbstractGLMesh.paint(AbstractGLMesh.java:191)
        at
com.raytheon.viz.core.gl.ext.imaging.AbstractGLImagingExtension.drawCoverage(AbstractGLImagingExtension.java:275)
        at
com.raytheon.viz.core.gl.ext.imaging.AbstractGLImagingExtension.drawRastersInternal(AbstractGLImagingExtension.java:188)
        at
com.raytheon.viz.core.gl.ext.imaging.AbstractGLImagingExtension.drawRasters(AbstractGLImagingExtension.java:104)
        at
com.raytheon.uf.viz.core.drawables.ImagingSupport.routeImages(ImagingSupport.java:124)
        at
com.raytheon.uf.viz.core.drawables.ImagingSupport.drawRasters(ImagingSupport.java:141)
        at
com.raytheon.uf.viz.core.AbstractGraphicsTarget.drawRasters(AbstractGraphicsTarget.java:104)
        at
com.raytheon.uf.viz.core.drawables.ext.colormap.GeneralColormappedImageExtension.drawRasters(GeneralColormappedImageExtension.java:83)
        at
com.raytheon.uf.viz.core.drawables.ImagingSupport.routeImages(ImagingSupport.java:124)
        at
com.raytheon.uf.viz.core.drawables.ImagingSupport.drawRasters(ImagingSupport.java:141)
        at
com.raytheon.uf.viz.core.AbstractGraphicsTarget.drawRasters(AbstractGraphicsTarget.java:104)
        at
com.raytheon.viz.satellite.tileset.SatRenderable.paint(SatRenderable.java:87)
        at
com.raytheon.uf.viz.core.rsc.AbstractPluginDataObjectResource.paintInternal(AbstractPluginDataObjectResource.java:344)
        at
com.raytheon.uf.viz.core.rsc.AbstractVizResource.paint(AbstractVizResource.java:510)
        at
com.raytheon.uf.viz.core.drawables.AbstractRenderableDisplay.paintResource(AbstractRenderableDisplay.java:629)
        ... 35 common frames omitted
Caused by: javax.media.opengl.GLException: Error: no OpenGL buffer object
appears to be bound to target 0x8892
        at
com.sun.opengl.impl.GLBufferSizeTracker.setBufferSize(GLBufferSizeTracker.java:118)
        at com.sun.opengl.impl.GLImpl.glBufferData(GLImpl.java:786)
        at
com.raytheon.viz.core.gl.GLGeometryObject2D.compile(GLGeometryObject2D.java:174)
        ... 53 common frames omitted
