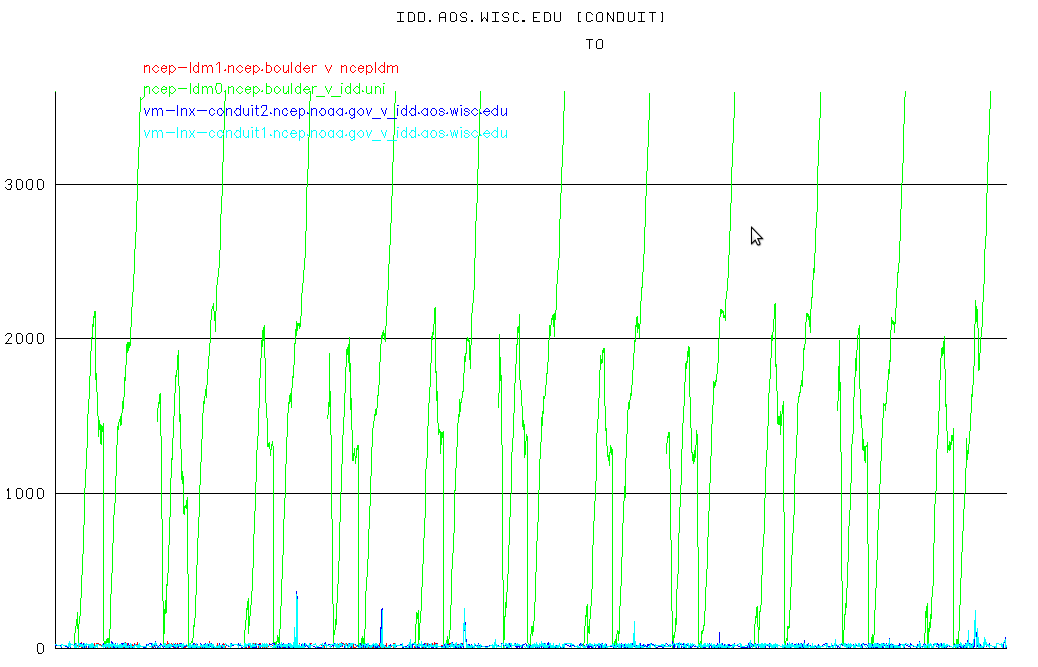

Sorry, would have chimed in on this sooner since I'm the one who first brought it up.. but it's been a hectic morning so far. Since I changed idd.aos.wisc.edu to be feeding from idd.unidata.ucar.edu and ncepldm4.woc.noaa.gov, we have been receiving the conduit data complete and in a timely fashion. However, per the attached image, I do note large increases in latency from conduit data coming via the path ldm0.ncep.boulder_v_idd-uni (probably truncated) on that graph. These latency increases are periodic, and amazingly regular - looks like an EKG or something. Though there are no times on the X axis of that graph, the peaks of latency align with each 6 hourly GFS/GEMS model/data cycle. Data coming through the paths ncep-ldm1.ncep.boulder_v_ncepldm, vm-lnx-conduit2.ncep.noaa.gov_v_idd.aos.wisc.edu and vm-lnx-conduit1.ncep.noaa.gov_v_idd.aos.wisc.edu seem to be fine - latencies 100 sec or less. I don't quite understand how those names (ncep-ldm[01].ncep.boulder and vm-lnx-conduit[12].ncep.noaal.gov relate to the two servers that I am requesting data from (idd.unidata.ucar.edu, and ncepldm4.woc.noaa.gov) but maybe that is a clue? I have not tried feeding data from conduit.ncep.noaa.gov since Friday when I first noticed the latencies and lost data. Pete <http://www.weather.com/tv/shows/wx-geeks/video/the-incredible-shrinking-cold-pool>-- Pete Pokrandt - Systems Programmer UW-Madison Dept of Atmospheric and Oceanic Sciences 608-262-3086 - poker@xxxxxxxxxxxx ________________________________ From: conduit-bounces@xxxxxxxxxxxxxxxx <conduit-bounces@xxxxxxxxxxxxxxxx> on behalf of Carissa Klemmer - NOAA Federal <carissa.l.klemmer@xxxxxxxx> Sent: Monday, February 22, 2016 12:57 PM To: admin@xxxxxxxx Cc: Bentley, Alicia M; Michael Schmidt; conduit@xxxxxxxxxxxxxxxx; _NCEP.List.pmb-dataflow; Daes Support Subject: Re: [conduit] Large CONDUIT latencies to UW-Madison idd.aos.wisc.edu starting the last day or two. Keep providing the feedback. All of it is being given to the NOAA NOC admins. This seems to be a pretty wide spread issue with numerous circuits being impacted. As soon as I have more information about resolution I will pass it on. Carissa Klemmer NCEP Central Operations Dataflow Team Lead 301-683-3835 On Mon, Feb 22, 2016 at 1:32 PM, <admin@xxxxxxxx<mailto:admin@xxxxxxxx>> wrote: Those traceroutes clearly show the issue is on the last 2 hops or inside NOAA. Ray On Friday, February 19, 2016 2:39pm, "Gerry Creager - NOAA Affiliate" <gerry.creager@xxxxxxxx<mailto:gerry.creager@xxxxxxxx>> said: > _______________________________________________ > conduit mailing list > conduit@xxxxxxxxxxxxxxxx<mailto:conduit@xxxxxxxxxxxxxxxx> > For list information or to unsubscribe, visit: > http://www.unidata.ucar.edu/mailing_lists/ If I were the conspiracy theory > type, I > might think to blame the > balkanization of all paths to the internet from NOAA sites via the Trusted > Internet Connection stuff. But I'm just hypothesizing. Or, they could be > running distro on overloaded VMs. > > gerry > > On Fri, Feb 19, 2016 at 1:28 PM, Patrick L. Francis > <wxprofessor@xxxxxxxxx<mailto:wxprofessor@xxxxxxxxx>> > wrote: > >> >> >> Art / Pete etc. al. J >> >> >> >> There seems to be a consistency is potential packet loss from no matter >> which route is taken into ncep… so whoever you are communicating with, >> you >> might have them investigate 140.90.111.36… reference the previous graphic >> shown and this new one here: >> >> >> >> http://drmalachi.org/files/ncep/ec2-ncep.png >> >> >> >> if you are unfamiliar with amazon ec2 routing, the first.. twenty >> something or so hops are just internal to amazon, and they don’t jump >> outside until you hit the internet2 hops, which then jump to gigapop, and >> from there to noaa internal.. so since this amazon box is in ashburn, >> physically it’s close, and has limited interruptions until that point. . >> >> >> >> the same hop causes more severe problems from my colo boxes, which are >> hurricane electric direct, which means that in those cases jumping from >> hurricane electric to 140.90.111.36 has “severe” problems (including >> packet >> loss) while jumping from amazon to I2 to gigapop to 140.90.111.36 also >> encounters issues, but not as severe.. >> >> >> >> hopefully this may help J Happy Friday J >> >> >> >> cheers, >> >> >> >> --patrick >> >> >> >> ------------------------------------------------------- >> >> Patrick L. Francis >> >> Vice President of Research & Development >> >> >> >> Aeris Weather >> >> >> >> http://aerisweather.com/ >> >> http://modelweather.com/ >> >> >> >> http://facebook.com/wxprofessor/ >> >> >> >> -------------------------------------------------------- >> >> >> >> *From:* >> conduit-bounces@xxxxxxxxxxxxxxxx<mailto:conduit-bounces@xxxxxxxxxxxxxxxx> >> [mailto: >> conduit-bounces@xxxxxxxxxxxxxxxx<mailto:conduit-bounces@xxxxxxxxxxxxxxxx>] >> *On Behalf Of *Arthur A Person >> *Sent:* Friday, February 19, 2016 1:57 PM >> *To:* Pete Pokrandt <poker@xxxxxxxxxxxx<mailto:poker@xxxxxxxxxxxx>> >> *Cc:* Bentley, Alicia M <ambentley@xxxxxxxxxx<mailto:ambentley@xxxxxxxxxx>>; >> Michael Schmidt < >> mschmidt@xxxxxxxx<mailto:mschmidt@xxxxxxxx>>; >> support-conduit@xxxxxxxxxxxxxxxx<mailto:support-conduit@xxxxxxxxxxxxxxxx> < >> conduit@xxxxxxxxxxxxxxxx<mailto:conduit@xxxxxxxxxxxxxxxx>>; >> _NCEP.List.pmb-dataflow < >> ncep.list.pmb-dataflow@xxxxxxxx<mailto:ncep.list.pmb-dataflow@xxxxxxxx>>; >> Daes Support <daessupport@xxxxxxxxxx<mailto:daessupport@xxxxxxxxxx>> >> *Subject:* Re: [conduit] Large CONDUIT latencies to UW-Madison >> idd.aos.wisc.edu<http://idd.aos.wisc.edu> starting the last day or two. >> >> >> >> Pete, >> >> >> >> We've been struggling with latencies for months to the point where I've >> been feeding gfs 0p25 from NCEP and the rest from Unidata... that is, up >> untl Feb 10th. The afternoon of the 10th, our latencies to NCEP dropped to >> what I consider "normal", an average maximum latency of about 30 seconds . >> Our networking folks and NCEP have been trying to identify what this >> problem was, but as far as I know, no problem has been identified or action >> taken. So, it appears it's all buried in the mysteries of the internet. >> I've switched data collection back to NCEP at this point, but I'm on the >> edge of my seat waiting to see if it reverts back to the old behavior... >> >> >> >> Art >> >> >> ------------------------------ >> >> *From: *"Pete Pokrandt" <poker@xxxxxxxxxxxx<mailto:poker@xxxxxxxxxxxx>> >> *To: *"Carissa Klemmer - NOAA Federal" >> <carissa.l.klemmer@xxxxxxxx<mailto:carissa.l.klemmer@xxxxxxxx>>, >> "Arthur A Person" <aap1@xxxxxxx<mailto:aap1@xxxxxxx>>, >> "_NCEP.List.pmb-dataflow" < >> ncep.list.pmb-dataflow@xxxxxxxx<mailto:ncep.list.pmb-dataflow@xxxxxxxx>> >> *Cc: >> *"support-conduit@xxxxxxxxxxxxxxxx<mailto:support-conduit@xxxxxxxxxxxxxxxx>" >> <conduit@xxxxxxxxxxxxxxxx<mailto:conduit@xxxxxxxxxxxxxxxx>>, >> "Michael Schmidt" <mschmidt@xxxxxxxx<mailto:mschmidt@xxxxxxxx>>, "Bentley, >> Alicia M" < >> ambentley@xxxxxxxxxx<mailto:ambentley@xxxxxxxxxx>>, "Daes Support" >> <daessupport@xxxxxxxxxx<mailto:daessupport@xxxxxxxxxx>> >> *Sent: *Friday, February 19, 2016 12:20:20 PM >> *Subject: *Large CONDUIT latencies to UW-Madison >> idd.aos.wisc.edu<http://idd.aos.wisc.edu> >> starting the last day or two. >> >> All, >> >> >> >> Not sure if this is on my end or somewhere upstream, but the last several >> runs my CONDUIT latencies have been getting huge to the point where we are >> losing data. >> >> >> >> I did stop my ldm the other day to add in an alternate feed for Gilbert at >> allisonhous.com<http://allisonhous.com>, not sure if that pushed me over a >> bandwidth limit, or by >> reconnecting we got hooked up to a different remote ldm, or taking a >> different path, that shot the latencies up. >> >> >> >> Seems to be really only CONDUIT, none of our other feeds show this kind of >> latency. >> >> >> >> Still looking into things locally, but wanted make people aware. I just >> rebooted idd.aos.wisc.edu<http://idd.aos.wisc.edu>, will see if that helps >> at all. >> >> >> >> Here's an ldmping and traceroute from >> idd.aos.wisc.edu<http://idd.aos.wisc.edu> to >> conduit.ncep.noaa.gov<http://conduit.ncep.noaa.gov>. >> >> >> >> [ldm@idd ~]$ ldmping conduit.ncep.noaa.gov<http://conduit.ncep.noaa.gov> >> >> Feb 19 17:16:08 INFO: State Elapsed Port Remote_Host >> rpc_stat >> >> Feb 19 17:16:08 INFO: Resolving >> conduit.ncep.noaa.gov<http://conduit.ncep.noaa.gov> to 140.90.101.42 >> took 0.00486 seconds >> >> Feb 19 17:16:08 INFO: RESPONDING 0.115499 388 >> conduit.ncep.noaa.gov<http://conduit.ncep.noaa.gov> >> >> >> >> >> >> traceroute to conduit.ncep.noaa.gov<http://conduit.ncep.noaa.gov> >> (140.90.101.42), 30 hops max, 60 byte >> packets >> >> 1 >> r-cssc-b280c-1-core-vlan-510-primary.net.wisc.edu<http://r-cssc-b280c-1-core-vlan-510-primary.net.wisc.edu> >> (144.92.130.3) >> 0.760 ms 0.954 ms 0.991 ms >> >> 2 >> internet2-ord-600w-100G.net.wisc.edu<http://internet2-ord-600w-100G.net.wisc.edu> >> (144.92.254.229) 18.119 ms >> 18.123 ms 18.107 ms >> >> 3 >> et-10-0-0.107.rtr.clev.net.internet2.edu<http://et-10-0-0.107.rtr.clev.net.internet2.edu> >> (198.71.45.9) 27.836 ms >> 27.852 ms 27.838 ms >> >> 4 >> et-11-3-0-1276.clpk-core.maxgigapop.net<http://et-11-3-0-1276.clpk-core.maxgigapop.net> >> (206.196.177.4) 37.363 ms >> 37.363 ms 37.345 ms >> >> 5 noaa-i2.demarc.maxgigapop.net<http://noaa-i2.demarc.maxgigapop.net> >> (206.196.177.118) 38.051 ms 38.254 ms >> 38.401 ms >> >> 6 140.90.111.36 (140.90.111.36) 118.042 ms 118.412 ms 118.529 ms >> >> 7 140.90.76.69 (140.90.76.69) 41.764 ms 40.343 ms 40.500 ms >> >> 8 * * * >> >> 9 * * * >> >> 10 * * * >> >> >> >> Similarly to ncepldm >> >> >> >> [ldm@idd ~]$ ldmping ncepldm4.woc.noaa.gov<http://ncepldm4.woc.noaa.gov> >> >> Feb 19 17:18:40 INFO: State Elapsed Port Remote_Host >> rpc_stat >> >> Feb 19 17:18:40 INFO: Resolving >> ncepldm4.woc.noaa.gov<http://ncepldm4.woc.noaa.gov> to 140.172.17.205 >> took 0.001599 seconds >> >> Feb 19 17:18:40 INFO: RESPONDING 0.088901 388 >> ncepldm4.woc.noaa.gov<http://ncepldm4.woc.noaa.gov> >> >> ^C >> >> >> >> [ldm@idd ~]$ traceroute ncepldm4.woc.noaa.gov<http://ncepldm4.woc.noaa.gov> >> >> traceroute to ncepldm4.woc.noaa.gov<http://ncepldm4.woc.noaa.gov> >> (140.172.17.205), 30 hops max, 60 >> byte packets >> >> 1 >> r-cssc-b280c-1-core-vlan-510-primary.net.wisc.edu<http://r-cssc-b280c-1-core-vlan-510-primary.net.wisc.edu> >> (144.92.130.3) >> 0.730 ms 0.831 ms 0.876 ms >> >> 2 >> internet2-ord-600w-100G.net.wisc.edu<http://internet2-ord-600w-100G.net.wisc.edu> >> (144.92.254.229) 18.092 ms >> 18.092 ms 18.080 ms >> >> 3 ae0.3454.core-l3.frgp.net<http://ae0.3454.core-l3.frgp.net> >> (192.43.217.223) 40.196 ms 40.226 ms >> 40.256 ms >> >> 4 noaa-i2.frgp.net<http://noaa-i2.frgp.net> (128.117.243.11) 40.970 ms >> 41.012 ms 40.996 ms >> >> 5 >> 2001-mlx8-eth-1-2.boulder.noaa.gov<http://2001-mlx8-eth-1-2.boulder.noaa.gov> >> (140.172.2.18) 42.780 ms 42.778 >> ms 42.764 ms >> >> 6 mdf-rtr-6.boulder.noaa.gov<http://mdf-rtr-6.boulder.noaa.gov> >> (140.172.6.251) 40.869 ms 40.922 ms >> 40.946 ms >> >> 7 * * * >> >> 8 * * * >> >> >> >> >> >> >> >> Pete >> >> >> >> >> >> >> >> -- >> Pete Pokrandt - Systems Programmer >> UW-Madison Dept of Atmospheric and Oceanic Sciences >> 608-262-3086 - poker@xxxxxxxxxxxx<mailto:poker@xxxxxxxxxxxx> >> >> >> >> >> >> -- >> >> Arthur A. Person >> Research Assistant, System Administrator >> Penn State Department of Meteorology >> email: aap1@xxxxxxx<mailto:aap1@xxxxxxx>, phone: 814-863-1563 >> >> _______________________________________________ >> conduit mailing list >> conduit@xxxxxxxxxxxxxxxx<mailto:conduit@xxxxxxxxxxxxxxxx> >> For list information or to unsubscribe, visit: >> http://www.unidata.ucar.edu/mailing_lists/ >> > > > > -- > Gerry Creager > NSSL/CIMMS > 405.325.6371 > ++++++++++++++++++++++ > “Big whorls have little whorls, > That feed on their velocity; > And little whorls have lesser whorls, > And so on to viscosity.” > Lewis Fry Richardson (1881-1953) > _______________________________________________ conduit mailing list conduit@xxxxxxxxxxxxxxxx<mailto:conduit@xxxxxxxxxxxxxxxx> For list information or to unsubscribe, visit: http://www.unidata.ucar.edu/mailing_lists/
Attachment:
Screenshot at 2016-02-22 13:08:58.png
Description: Screenshot at 2016-02-22 13:08:58.png
