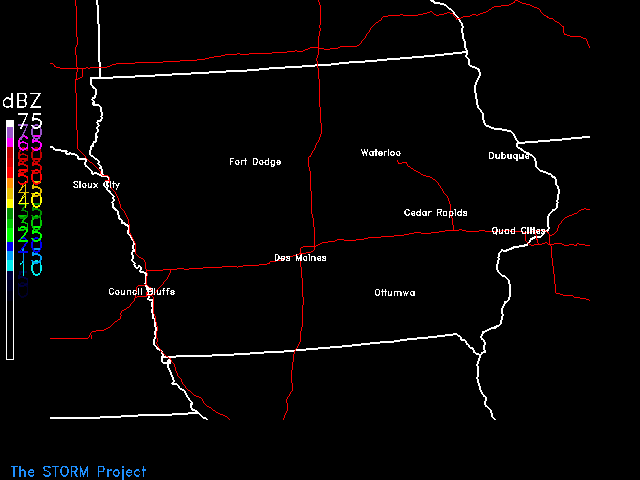

Hello all,I'm trying to write a script to display radar over Iowa, and am having trouble getting the imagery to show up right. Attached is my script, what the image looks like right now, and the output when I run my script.
If you see anything I'm doing wrong, please let me know. Thanks so much, Chris
Content-Type: text/plain;
name="output.txt"
Content-Transfer-Encoding: 7bit
Content-Disposition: inline;
filename="output.txt"
GRDAREA Area covered by grid
PROJ Map projection/angles/margins|dr MER
KXKY Number of grid points in x;y 10;10
CPYFIL Grid file whose navigation is to
GFUNC Scalar grid TMPC
RADTIM Radar composite current/dattim
RADDUR Radar time window (minutes prior
RADFRQ Update Frequency
STNFIL Station information file SFSTNS.TBL
RADMODE Radar operational mode
SATFIL Satellite image filename(s)
COMPRESS Write output in compressed forma
Parameters requested: GRDAREA,PROJ,KXKY,CPYFIL,GFUNC,RADTIM,RADDUR,RADFRQ,
STNFIL,RADMODE,SATFIL,COMPRESS.
GEMPAK-NEX2GINI> GEMPAK-NEX2GINI> GEMPAK-NEX2GINI> GEMPAK-NEX2GINI>
GEMPAK-NEX2GINI> GEMPAK-NEX2GINI> GEMPAK-NEX2GINI> GEMPAK-NEX2GINI>
GEMPAK-NEX2GINI> GEMPAK-NEX2GINI> GEMPAK-NEX2GINI> GEMPAK-NEX2GINI>
GEMPAK-NEX2GINI> GEMPAK-NEX2GINI> GEMPAK-NEX2GINI> [NEX2GINI 4] Write image
080501/1456
Parameters requested: GRDAREA,PROJ,KXKY,CPYFIL,GFUNC,RADTIM,RADDUR,RADFRQ,
STNFIL,RADMODE,SATFIL,COMPRESS.
GEMPAK-NEX2GINI> GEMPAK-NEX2GINI> MAP Map color/dash/width/filter flag 1
MSCALE fgc;bgc;mask/units/lat;hide/valu 0
GAREA Graphics area WV
PROJ Map projection/angles/margins|dr lcc/40;-100;40
SATFIL Satellite image filename(s) rad_20080501_1400
RADFIL Radar image filename(s)
IMCBAR Color/ornt/anch/x;y/ln;wd/freq
LATLON Line color/dash/width/freq/inc/l
PANEL Panel loc/color/dash/width/regn 0
TITLE Title color/line/title 1
TEXT Size/fnt/wdth/brdr/N-rot/just/hw 1
CLEAR Clear screen flag YES
DEVICE Device|name|x size;y size|color XW
LUTFIL Enhancement lookup table filenam
STNPLT Txtc/txt attr|marker attr|stnfil
VGFILE Vgfile | scale file | attribute
AFOSFL AFOS Graphics File
AWPSFL AWIPS Graphics File
LINE Color/type/width/label/smth/fltr 3
WATCH End time|Wtch clrs|Wtch Tm;Statu
WARN End time|TS;TN;FF clrs|Tm|Lb|Out
HRCN End time|colors|syms|Tm|Lb|Mt|Qw
ISIG End time|colors|Sym|Tm|Id|Mv|Fl
LTNG End time|time ints/colors|marker
ATCF Time|colors|models|Tm|Id|Mv|Mkr|
AIRM Airmet Plotting Attributes
NCON NCON attributes
CSIG End time|0_Hr;1_Hr;2_Hr;OL clrs|
SVRL End time|SVRL clrs|Tm|Lb|Outline
BND Bnd name/color/fillsiz/fillpat/f
TCMG End time|colors|center
QSCT QuickScat Plotting Attributes
WSTM End time|WN;WT;AD clrs|Tm|Lb|Out
WOU End time|Mrkr and Otln clrs|Tm|L
WCN End time|Mrkr and Otln clrs|Tm|L
WCP End time|Wtch clrs|Tm|Lb|Clr
ENCY Time|colors|models|Tm|Prs|Mkr|Cc
FFA End time|FF;FA clrs|Tm|Lb|Ic|Out
WSAT WindSAT Plotting Attributes
ASCT AScat Plotting Attributes
Parameters requested: MAP,MSCALE,GAREA,PROJ,SATFIL,RADFIL,IMCBAR,LATLON,
PANEL,TITLE,TEXT,CLEAR,DEVICE,LUTFIL,STNPLT,VGFILE,AFOSFL,AWPSFL,LINE,WATCH,
WARN,HRCN,ISIG,LTNG,ATCF,AIRM,NCON,CSIG,SVRL,BND,TCMG,QSCT,WSTM,WOU,WCN,WCP,
ENCY,FFA,WSAT,ASCT.
GEMPAK-GPMAP> GEMPAK-GPMAP> GEMPAK-GPMAP> GEMPAK-GPMAP> GEMPAK-GPMAP>
GEMPAK-GPMAP> GEMPAK-GPMAP> GEMPAK-GPMAP> GEMPAK-GPMAP> GEMPAK-GPMAP>
GEMPAK-GPMAP> GEMPAK-GPMAP> GEMPAK-GPMAP> GEMPAK-GPMAP> GEMPAK-GPMAP>
GEMPAK-GPMAP> GEMPAK-GPMAP> GEMPAK-GPMAP> GEMPAK-GPMAP> GEMPAK-GPMAP>
GEMPAK-GPMAP> GEMPAK-GPMAP> GEMPAK-GPMAP> GEMPAK-GPMAP> GEMPAK-GPMAP>
GEMPAK-GPMAP> GEMPAK-GPMAP> GEMPAK-GPMAP> GEMPAK-GPMAP> GEMPAK-GPMAP>
GEMPAK-GPMAP> GEMPAK-GPMAP> GEMPAK-GPMAP> GEMPAK-GPMAP> GEMPAK-GPMAP>
GEMPAK-GPMAP> GEMPAK-GPMAP> GEMPAK-GPMAP> GPMAP PARAMETERS:
Device: gif|vis_radar.gif
Projection: sat/30.0;-92.9;60.0
Graphics area name: 40.0;-97.3;43.9;-89.4
Map: 31/1/2 + 2/1/1
Title:
Panel: 0
Latlon: 0
Clear: YES
Enter <cr> to accept parameters or type EXIT: Parameters requested:
MAP,MSCALE,GAREA,PROJ,SATFIL,RADFIL,IMCBAR,LATLON,
PANEL,TITLE,TEXT,CLEAR,DEVICE,LUTFIL,STNPLT,VGFILE,AFOSFL,AWPSFL,LINE,WATCH,
WARN,HRCN,ISIG,LTNG,ATCF,AIRM,NCON,CSIG,SVRL,BND,TCMG,QSCT,WSTM,WOU,WCN,WCP,
ENCY,FFA,WSAT,ASCT.
GEMPAK-GPMAP> PANEL Panel loc/color/dash/width/regn 0
COLORS Color list 1
TEXT Size/fnt/wdth/brdr/N-rot/just/hw 1.5/22/hw
CLEAR Clear screen flag y
DEVICE Device|name|x size;y size|color gif|vis_radar.gif
TXTFIL Text filename or LOGO|size|mode
TXTLOC Text location
COLUMN Number of columns 1
Parameters requested: PANEL,COLORS,TEXT,CLEAR,DEVICE,TXTFIL,TXTLOC,COLUMN.
GEMPAK-GPTEXT> GEMPAK-GPTEXT> GEMPAK-GPTEXT> GEMPAK-GPTEXT> GEMPAK-GPTEXT>
GEMPAK-GPTEXT> GEMPAK-GPTEXT> GEMPAK-GPTEXT> GPTEXT PARAMETERS:
Device: gif|vis_radar.gif
Text file: /home/gempak/scripts/storm.txt
Text location: .01;.03
Panel: 0
Num Columns 1
Clear: NO
Enter <cr> to accept parameters or type EXIT: Parameters requested:
PANEL,COLORS,TEXT,CLEAR,DEVICE,TXTFIL,TXTLOC,COLUMN.
GEMPAK-GPTEXT># This script will plot radar
# over Iowa for the visitors center pages
# for the most recent available data.
#
#
#----------------------------------------------------------------------
#
# Make a working directory for this script and move there
#
cd /home/gempak/scripts
mkdir radarwork
cd radarwork
source /home/gempak/NAWIPS/Gemenviron
#
#----------------------------------------------------------------------
#
setenv DISPLAY anemos.storm.uni.edu:1.0
#-----------------------------------------------------------------------
# Set time information. This stuff should be parsed automatically
# and should not require any mods. Look down below for changing
# this script to fit additional applications.
# get all the date/time information for real-time
#
# first get the "real" time for the image titles
set HR=`date "+%H"`
set day=`date "+%a"`
set mon=`date "+%b"`
set year=`date "+%Y"`
set date=`date "+%e"`
if ( $HR == 00 || $HR > 12 ) then
if ( $HR == 00 ) set hour=12
if ( $HR == 13 ) set hour=1
if ( $HR == 14 ) set hour=2
if ( $HR == 15 ) set hour=3
if ( $HR == 16 ) set hour=4
if ( $HR == 17 ) set hour=5
if ( $HR == 18 ) set hour=6
if ( $HR == 19 ) set hour=7
if ( $HR == 20 ) set hour=8
if ( $HR == 21 ) set hour=9
if ( $HR == 22 ) set hour=10
if ( $HR == 23 ) set hour=11
else
set hour=$HR
endif
#---------------------------------------
# next, get the UTC times set
setenv TZ UTC
set cc=`date "+%Y" | cut -c 1-2`
set yy=`date "+%y"`
set mm=`date "+%m"`
set dd=`date "+%d"`
set hh=`date "+%H"`
set realtime_flag=T
#----------------------------------------------------------------------
#
# Set the AM/PM variable ***CHANGE THIS SAVINGS TIME****
if ( $hh == 05 || $hh == 06 || $hh == 07 || $hh == 08 || $hh == 09 || $hh == 10
|| $hh == 11 || $hh == 12 || $hh == 13 || $hh == 14 || $hh == 15 || $hh == 16 )
then
set xm=am
else
set xm=pm
endif
#--------------------------------------------
#Get month name
if ( $mm == "01" ) set mon=JAN
if ( $mm == "02" ) set mon=FEB
if ( $mm == "03" ) set mon=MAR
if ( $mm == "04" ) set mon=APR
if ( $mm == "05" ) set mon=MAY
if ( $mm == "06" ) set mon=JUN
if ( $mm == "07" ) set mon=JUL
if ( $mm == "08" ) set mon=AUG
if ( $mm == "09" ) set mon=SEP
if ( $mm == "10" ) set mon=OCT
if ( $mm == "11" ) set mon=NOV
if ( $mm == "12" ) set mon=DEC
#--------------------------------------------------------------------
#
# Customize shell variables here...
#
#--------------------------------------------------------------------
# Build all the variables that use times.
set dattim=${yy}${mm}${dd}/${hh}00
set sffile=/space/data/ldm/gempak/surface/${cc}${yy}${mm}${dd}_sao.gem
set datelabel="${hour}:00$xm $day $date $mon $year"
#--------------------------------------------------------------------
#
# Set the output plot file
#
#--------------------------------------------------------------------
# Set the GIF file names.
set tmpgif=vis_radar.gif
set finalgif=/home/gempak/scripts/transfer/vis_radar.gif
# Do minimal error checking - verify the gempak file is there.
if ( ! -e $sffile ) then
echo "GEMPAK file $sffile does not exist. "
endif
#-------------------------------------------------------
#
# Run the gempak program(s)
#
# Make a Surface Temps Map
#-------------------------------------------------------
nex2gini<<NEX2GINI_FLAG
GRDAREA = 23;-120;47.2634;-63.5664
PROJ = lcc/40;-100;40
KXKY = 4736;3000
CPYFIL =
GFUNC = n0r
RADTIM = current
RADDUR = 30
RADFRQ =
STNFIL = nexrad.tbl
RADMODE = pc
SATFIL = rad_${cc}${yy}${mm}${dd}_${hh}00
COMPRESS =
run
exit
NEX2GINI_FLAG
#------------------------------------------------------------
#
# Now plot the gol dern thing
gpmap<<GPMAP_FLAG
MAP = 31/1/2 + 2/1/1
GAREA = 40.0;-97.3;43.9;-89.4
PROJ = sat/30.0;-92.9;60.0
SATFIL = rad_${cc}${yy}${mm}${dd}_${hh}00
RADFIL =
IMCBAR = -1/v/cl/.01;.5
LATLON = 0
PANEL = 0
TITLE =
TEXT = 1.5/22/hw
CLEAR = y
DEVICE = gif|$tmpgif
LUTFIL =
STNPLT = 31/.65|0|/home/gempak/scripts/sfstns_sat.tbl#3
VGFILE =
AFOSFL =
AWPSFL =
LINE =
WATCH =
WARN =
HRCN =
ISIG =
LTNG =
ATCF =
AIRM =
NCON =
CSIG =
SVRL =
BND =
TCMG =
QSCT =
WSTM =
WOU =
WCN =
\$mapfil = histus.nws + hiisus.nws
run
exit
GPMAP_FLAG
#---------------------------------------------------------
# put some STORM text on the thing
gptext<< GPTEXT_FLAG
clear=no
txtfil=/home/gempak/scripts/storm.txt
txtloc=.01;.03
text=1/22/HW
colors=25
column=1
run
GPTEXT_FLAG
gpend
#--------------------------------------------------------------------
# Move the temporary gif to its final resting place.
mv $tmpgif $finalgif
#-----------------------------------------------------
#
# Back out of working directory and remove it
#
cd ..
#rm -rf radarwork
#---------------------------------------------------END
