Re: [idvusers] displaying colour scale using transparency

Hi Don -

On 2010-05-23 14:43, Don Murray wrote:

Hi HP-

HansPeter Roesli wrote:
Recently I have frequently been using a colour table partially that includes (semi-)transparent stretches. The colour scale displays correctly in the selection list of colour tables, i.e. you see the (semi-)transparent stretches. However, in all other instances (in the legend and when burnt into the display + other places?) the colour scale shows no transparency signature. It would be especially useful to have the signature in the display. Is this a bug or oversight?
This is by design. There was a brief period in the development of IDV 2.8 (one of the alpha or beta releases) where the transparent portion was displayed in the legends.
Obviously, I was not yet sensitive to this issue then, otherwise I would have shouted over the Atlantic.
It just didn't look right, so we made them solid and ignored the transparency. Perhaps this could be a preference in some future release.

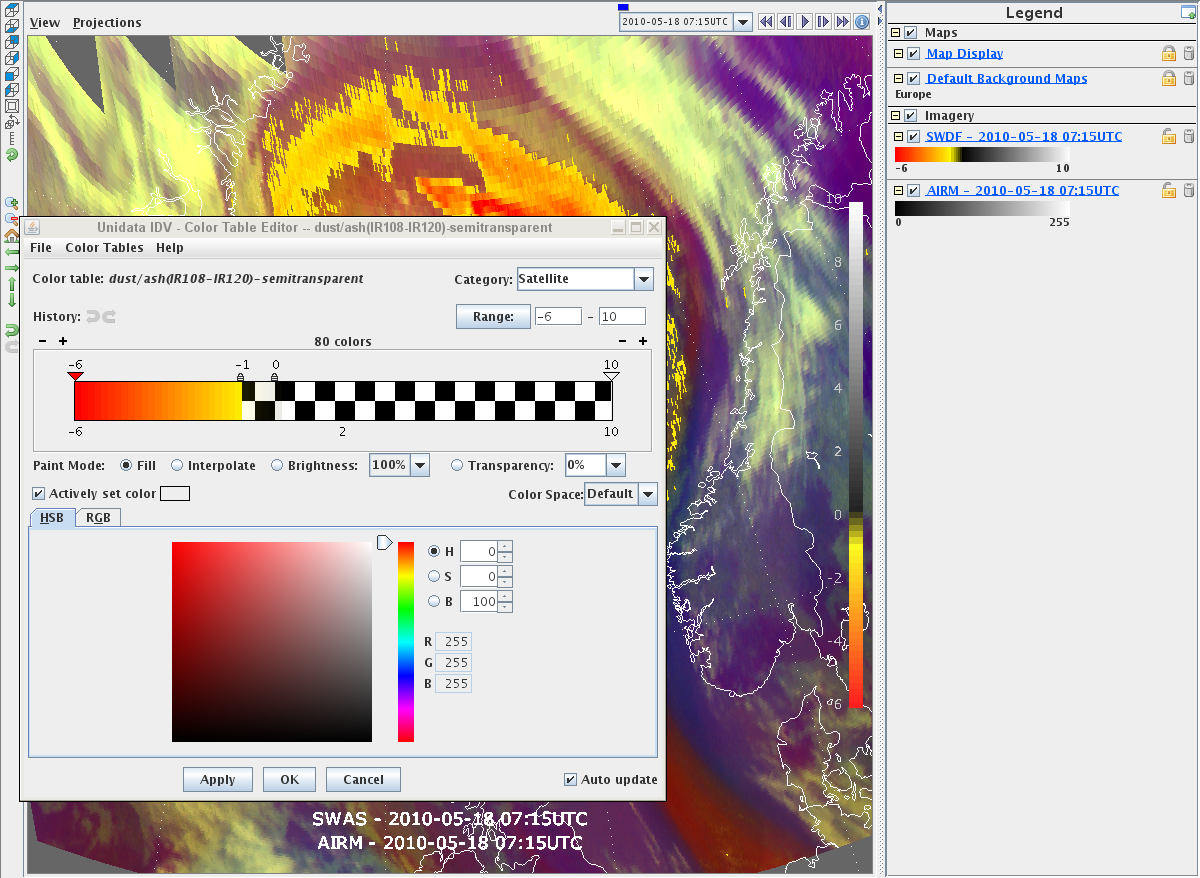

I am not sure why it should not have looked right. To me it looks alright when editing the colour table and also when choosing the table from a list of tiny colour bars. I you look at the attached image you clearly see that the colour bar without showing the tranparent part is transmitting wrong information. Might this feature re-appraised (after your departure (or on Sundays when you are working from home ;-) ).

cheers, HP


Don
*************************************************************
Don Murray                               UCAR Unidata Program
dmurray@xxxxxxxxxxxxxxxx                        P.O. Box 3000
(303) 497-8628                              Boulder, CO 80307
http://www.unidata.ucar.edu/staff/donm
*************************************************************

Attachment: 201005180715_m9-ACMP_EyjafjallaEruption-IS.png
Description: PNG image
