Dear IDV users,
I am visualizing CAMX binary output (LatLon coordinates) in IDV. IDV
reads this data using the netcdf library
("ucar.nc2.iosp.uamiv.UAMIVServiceProvider"). In principle it works, but
there are two tings bugging me:

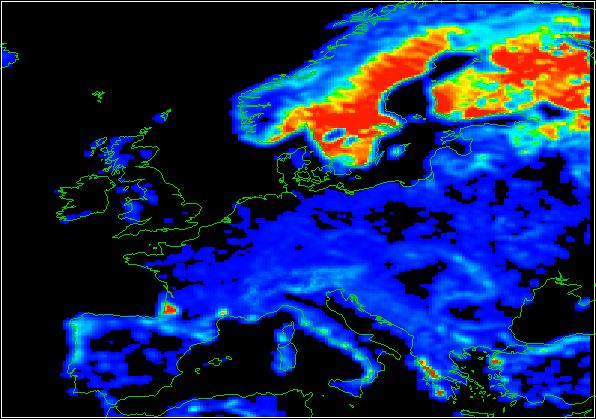

- there is a gap between the border of my data (top and right) and the
white wireframe rectangle (border.jpg in the attachment)
- it seems that the data is shifted 2 cells to the north and 2 cells to
the east
My camxproj.txt file contains these lines:
---
GDTYP=1
# These are ignored (defaults)
P_ALP=20.0
P_BET=60.0
P_GAM=0.0
---
I noticed that other camxproj parameters are ignored, the coordinate
data is read from the files.
Has anybody observed a similar pattern?
Thanks for you insights!
Cheers,
Daniel
--
Daniel Oderbolz
Paul Scherrer Institut
CH-5232 Villigen
Laboratory of Atmospheric Chemistry,
Gasphase and Aerosol Chemistry Group
OFLA/007
Tel: +41 (0)56 310 2449
Fax: 4525
daniel.oderbolz [AT] psi.ch
Attachment:
Description: border.jpg
