Re: [ldm-users] Is my Novra properly configured for GOES-16 ?

• To: "Patrick L. Francis" <wxprofessor@xxxxxxxxx>
• Subject: Re: [ldm-users] Is my Novra properly configured for GOES-16 ?
• From: Daniel Vietor - NOAA Affiliate <dan.vietor@xxxxxxxx>
• Date: Tue, 19 Dec 2017 13:08:57 -0600

Here is what I'm using with LDM 6.13.6.

EXEC    "noaaportIngester -l /nrs/logs/nwstg.log   -I 10.0.5.51 -m
224.0.1.1"
EXEC    "noaaportIngester -l /nrs/logs/goes.log    -I 10.0.5.51 -m
224.0.1.2"
EXEC    "noaaportIngester -l /nrs/logs/nwstg2.log  -I 10.0.5.51 -m
224.0.1.3"
EXEC    "noaaportIngester -l /nrs/logs/oconus.log  -I 10.0.5.51 -m
224.0.1.4"
EXEC    "noaaportIngester -l /nrs/logs/goesr-e.log -I 10.0.5.51 -m
224.0.1.10"

You need a recent version of LDM for it to set up the multicast right for
GOES 16 data.  I believe 6.13 is the critical version.

Then you should see GOES 16 data under the NOTHER feed type and WMO header
TIRE and TIRS.

Dan.


On Tue, Dec 19, 2017 at 12:39 PM, Patrick L. Francis <wxprofessor@xxxxxxxxx>
wrote:

>
>
> I'm trying to resolve some issues getting GOES-16 data over NOAAPort and I
> was wondering if some kind soul out there could sanity-check my Novra
> configuration?..
>

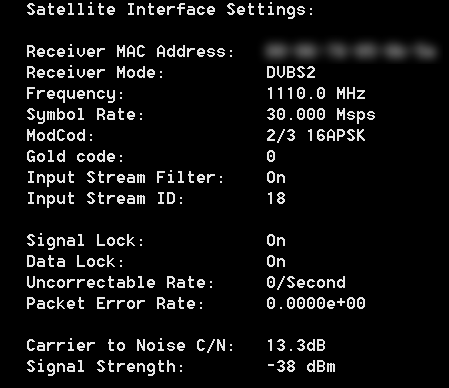

> probably your pid configuration... sat interface should be
>

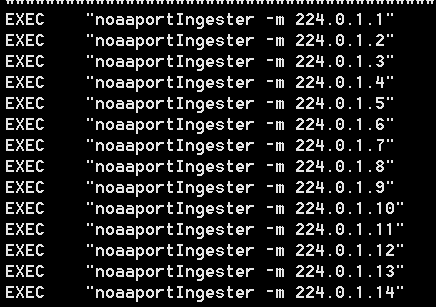

> i run my pids through 14
>
>
> good luck
>
> --patrick
>
> …………………………………………………………...........
>
> Patrick L. Francis
>
> Vice President of Research & Development
>
> Aeris Weather
>
>
>
> http://aerisweather.com/
>
> http://modelweather.com/
>
>
>
> wxprofessor@xxxxxxxxx
>
> http://facebook.com/wxprofessor/
>
>
>
> …………………………………………………………
>
>
> ..
>
>
>
>
>
> _______________________________________________
> NOTE: All exchanges posted to Unidata maintained email lists are
> recorded in the Unidata inquiry tracking system and made publicly
> available through the web.  Users who post to any of the lists we
> maintain are reminded to remove any personal information that they
> do not want to be made public.
>
>
> ldm-users mailing list
> ldm-users@xxxxxxxxxxxxxxxx
> For list information or to unsubscribe,  visit:
> http://www.unidata.ucar.edu/mailing_lists/
>



--
*Dan Vietor*
*Senior Research Meteorologist*
CIRA, Colorado State Univ
Aviation Weather Center
Kansas City, MO
816.584.7211
