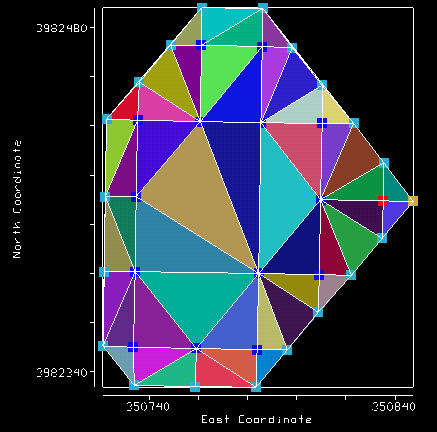

Hello VisADers,I am using VisAD to display a bunch of filled triangles (as shown in attachment). Since each triangle is supposed to be a different color my approach was to create an irregular2DSet for each one (using Delaunay.fill()) and then create a reference for each one with an associated constant map (describing Red, Green, Blue).
However, this is awfully slow when I have hundreds of triangles. I was looking for something like creating an unionSet with the irregular2DSets with each irregular2DSet having a property associated to the color but I couldn't find a way to to it.
I found a few references to this on the mail list, but I couldn't make sense of them in the context of my problem.
I would appreciate your help on this matter. Thanks, Ricardo -- ------------------------------------------------------------- Ricardo Mantilla Posdoctoral Research Associate Department of Earth and Environmental Science New Mexico Institute of Mining and Technology 801 Leroy Pl. MSEC 254 Socorro, NM 87801 Phone: (505) 835-5068 Office: MSEC 254 http://cires.colorado.edu/~ricardo/ -------------------------------------------------------------
