Hi Jeff,

GEMPAK-GDINFO>r

 GRID FILE: /gem7/data/model/rtma/2011080804_rtma.gem

 GRID NAVIGATION:
     PROJECTION:          LCC
     ANGLES:                25.0   -95.0    25.0
     GRID SIZE:         21451377
     LL CORNER:              20.19   -121.55
     UR CORNER:              50.11    -60.89

 GRID ANALYSIS BLOCK:
      UNKNOWN ANALYSIS TYPE

 Number of grids in file:    14

 Maximum number of grids in file:    200

  NUM       TIME1              TIME2           LEVL1 LEVL2  VCORD PARM
    1     110808/0400F000                         10         HGHT DRCTAE
    2     110808/0400F000                         10         HGHT SPED
    3     110808/0400F000                         10         HGHT SPEDAE
    4     110808/0400F000                         10         HGHT VREL
    5     110808/0400F000                         10         HGHT UREL
    6     110808/0400F000                         10         HGHT DRCT
    7     110808/0400F000                          2         HGHT TMPKAE
    8     110808/0400F000                          2         HGHT DWPK
    9     110808/0400F000                          2         HGHT DWPKAE
   10     110808/0400F000                          2         HGHT TMPK
   11     110808/0400F000                          0         NONE PRES
   12     110808/0400F000                          0         NONE HGHT
   13     110808/0400F000                          0         NONE PRESAE
   14     110808/0400F001                          0         NONE P01M

The pqact I use is more specific than yours, but it shouldn't really matter.

# RTMA (real-time mesoscale analysis) Grid 227 CONUS 2km
NGRID    ^L.IA98 KWBR
    PIPE    decoders/dcgrib2 -m 200 -d data/gempak/logs/dcgrib2_rtma.log
    -e GEMTBL=/home/gempak/GEMPAK6.2.0/gempak/tables
    /gem7/data/model/rtma/YYYYMMDDHH_rtma.gem


James

----------------------------------------------
James Murakami
Staff Meteorologist/Student Affairs
Department of Atmospheric and Oceanic Sciences
University of California, Los Angeles
405 Hilgard Ave.
Los Angeles, CA  90095-1565


   e-mail: tenki@xxxxxxxxxxxxxx
telephone: 310-825-2418
      Fax: 310-206-5219
----------------------------------------------


On 08/05/2011 10:51 PM, Jeff Lake wrote:

greetings gembuds.
anybody else using dcgrib2 to convert the RTMA to gem?
looks as if there is an error in the header,
or I'm screwing something up
here is a snippet of the GDINFO

  GRID FILE: /usr/local/ldm/data/text/gempak/model/rtma/2011080604_rtma.gem

  GRID NAVIGATION:
      PROJECTION:          MER
      ANGLES:                 0.0     0.0     0.0
      GRID SIZE:          177 129
      LL CORNER:              16.83    -68.20
      UR CORNER:              19.75    -63.97

and in my LDM pqact.conf

NGRID   ^L...98 .... .*RTMA
         pipe    decoders/dc/dcgrib2
         -e GEMTBL=/usr/local/ldm/nawips/gempak/tables
         data/text/gempak/model/rtma/YYYYMMDDHH_rtma.gem

that is a horribly small area to map ...

anybody got suggestions ???

-Jeff

_______________________________________________
gembud mailing list
gembud@xxxxxxxxxxxxxxxx
For list information or to unsubscribe,  visit:
http://www.unidata.ucar.edu/mailing_lists/

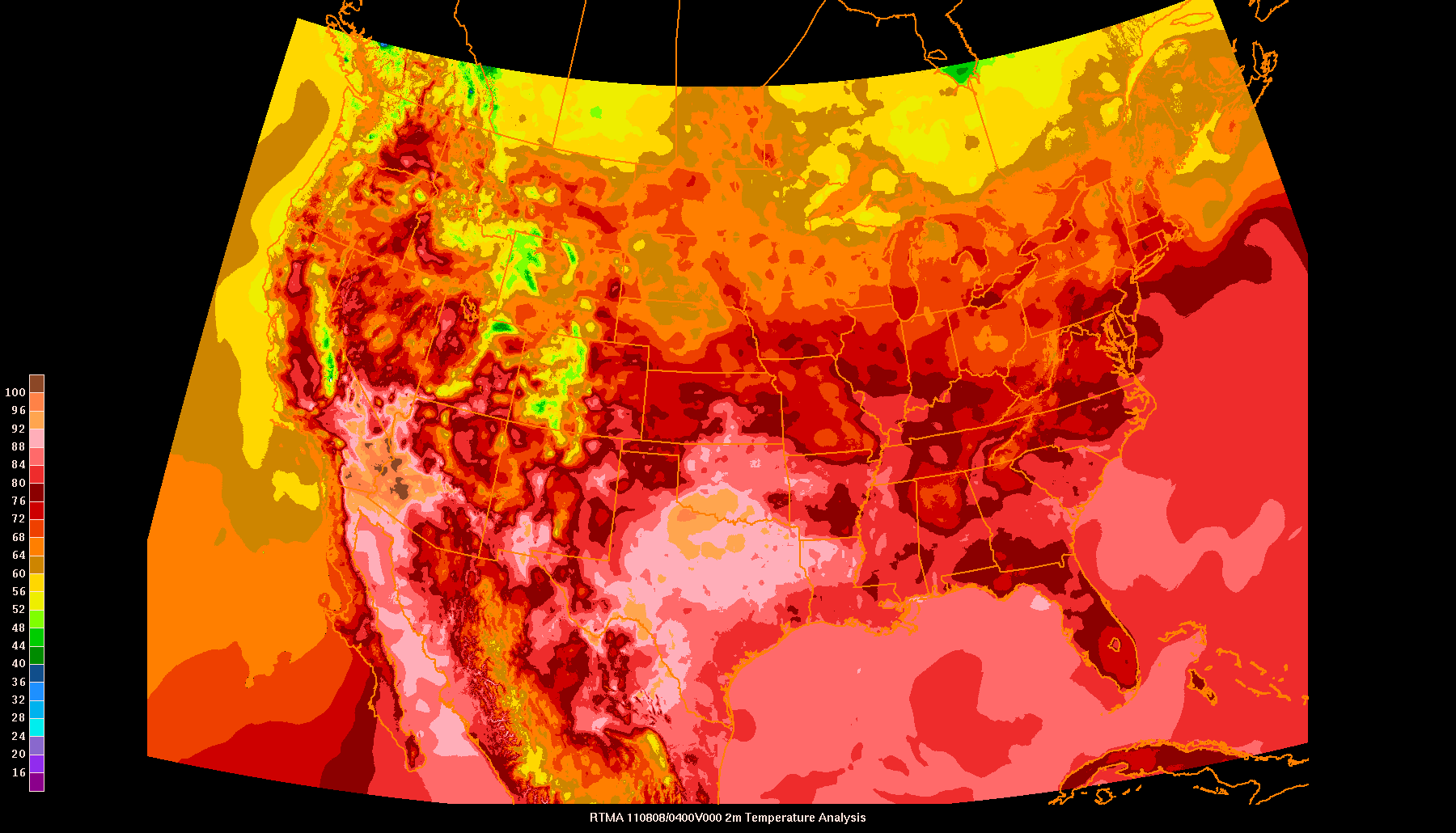

Attachment: 11080804_rtma.gif
