Re: [gembud] navgem in GEMPAK7

To: "Smith, Neil R" <n-smith2@xxxxxxxxxxxxx>
Subject: Re: [gembud] navgem in GEMPAK7
From: Michael James <mjames@xxxxxxxx>
Date: Wed, 2 Mar 2016 12:43:44 -0600
I don't see this our systems running the latest 7.2.2, I'm not sure exactly
why this is happening but a good guess would be old tables.  Here's my
NAVGEM map from beginning to end:



*in pqact.conf*

#              (       | FAROP   | NAVGEM  |  COeuro | COwatl  |  WW3    |
WW3euro |  NCODA  )
FNMOC
^US058.*(COAMPS|0135_0240|0018_0056|0022_0179|0063_0187|0110_0240|0111_0179|0078_0200)_.*
        PIPE    dcgrib2 -d data/gempak/logs/dcgrib2_fnmoc.log
        -e GEMTBL=/home/gempak/NAWIPS/gempak/tables



*in $GEMTBL/grid/gribkey.tbl*

! FNMOC NAVGEM and COAMPS
!center sub modelid grid   Output grid file name                   max_grids
058   x   018       056
 data/gempak/model/fnmoc/navgem/YYYYMMDDHHfFFF_navgem.gem 500
058   x   022       179
 data/gempak/model/fnmoc/coamps/YYYYMMDDHH_coamps_europe.gem 1500
058   x   063       187
 data/gempak/model/fnmoc/coamps/YYYYMMDDHH_coamps_watl.gem     1500
! FNMOC Ocean Models
058   x   110       240    data/gempak/model/fnmoc/ww3/fnmoc_ww3_YYYYMMDDHH
         1500
058   x   111       179
 data/gempak/model/fnmoc/ww3/fnmoc_ww3_europe_YYYYMMDDHH   1500
058   x   135       240
 data/gempak/model/fnmoc/farop/YYYYMMDDHH_fnmoc_farop.gem      100
058   x   078       200
 data/gempak/model/fnmoc/ncoda/YYYYMMDDHH_fnmoc_ncoda.gem      100
!
! some COAMPS regions and NOGAPS are no longer run.  left here for archive
data.
058   x   082       020
 data/gempak/model/fnmoc/coamps/YYYYMMDDHH_coamps_conus.gem  1500
058   x   060       188
 data/gempak/model/fnmoc/coamps/YYYYMMDDHH_coamps_epac.gem   1500
058   x   027       186
 data/gempak/model/fnmoc/coamps/YYYYMMDDHH_coamps_centam.gem 1500
058   x   058       @@@
data/gempak/model/fnmoc/nogaps/YYYYMMDDHH_nogaps@@@.gem
15000
058   x   ???       @@@
data/gempak/model/fnmoc/coamps/YYYYMMDDHH_coamps@@@.gem
    1500



*in datatype.tbl*

NAVGEM       $MODEL/fnmoc/navgem       YYYYMMDDHHfFFF_navgem.gem
             CAT_GRD  SCAT_FCT   -1     -1     -1      OFF/0/0      4



*files look like*

-bash-4.1$ ls -alt $MODEL/fnmoc/navgem | more
total 61067440
-rw-r--r-- 1 858 ustaff 139231744 Mar  2 11:27 2016030212f024_navgem.gem
-rw-r--r-- 1 858 ustaff 133349888 Mar  2 11:27 2016030212f048_navgem.gem
-rw-r--r-- 1 858 ustaff 123016704 Mar  2 11:27 2016030212f078_navgem.gem
-rw-r--r-- 1 858 ustaff 117654528 Mar  2 11:27 2016030212f069_navgem.gem
-rw-r--r-- 1 858 ustaff 132147712 Mar  2 11:27 2016030212f090_navgem.gem
-rw-r--r-- 1 858 ustaff 122496000 Mar  2 11:27 2016030212f102_navgem.gem
-rw-r--r-- 1 858 ustaff 110991872 Mar  2 11:27 2016030212f126_navgem.gem
-rw-r--r-- 1 858 ustaff 115574784 Mar  2 11:16 2016030212f057_navgem.gem
-rw-r--r-- 1 858 ustaff 132147712 Mar  2 11:10 2016030212f060_navgem.gem
-rw-r--r-- 1 858 ustaff  58187264 Mar  2 11:10 2016030212f162_navgem.gem



*in gdinfo*

GEMPAK-GDINFO>l
 GDFILE   = NAVGEM
 LSTALL   = YES
 OUTPUT   = T
 GDATTIM  = LAST
 GLEVEL   = 500
 GVCORD   = PRES
 GFUNC    = all
 GEMPAK-GDINFO>r
 GRID FILE: /data/ldm/gempak/model/fnmoc/navgem/2016030212f180_navgem.gem

 GRID NAVIGATION:
     PROJECTION:          CED
     GRID SIZE:              720     361
     LL CORNER:           -90.0000    0.0000
     UR CORNER:            90.0000   -0.5000
 GRID ANALYSIS BLOCK:
      UNKNOWN ANALYSIS TYPE
 Number of grids in file:   262
 Maximum number of grids in file:    500
  NUM       TIME1              TIME2           LEVL1 LEVL2  VCORD PARM
  118     160302/1200F180                        500         PRES OMEG

  119     160302/1200F180                        500         PRES VAPR

  120     160302/1200F180                        500         PRES AVOR

  121     160302/1200F180                        500         PRES RELH

  122     160302/1200F180                        500         PRES DPDK

  123     160302/1200F180                        500         PRES UREL

  124     160302/1200F180                        500         PRES TMPK

  125     160302/1200F180                        500         PRES HGHT

  126     160302/1200F180                        500         PRES VREL






*in gdplot2 (attached, no wnd plotted)*

 GDFILE   = NAVGEM
 GDATTIM  = 1200f000
 GLEVEL   = 2       ! 10
 GVCORD   = hght    ! hght
 PANEL    = 0
 SKIP     = 0/2;2
 SCALE    = 0
 GDPFUN   = tmpf    ! wnd
 TYPE     = cf      ! b
 CONTUR   = 3/3     ! 1
 CINT     = 1/32/32 !
 LINE     = 32/1/3   !
 FINT     =
-25;-20;-15;-10;-5;0;5;10;15;20;25;30;35;40;45;50;55;60;65;70;75;80;85;90;95;100;105;110;115
 FLINE    = 2-25
 HILO     =
 HLSYM    =
 CLRBAR   = 31/h/lc/.5;0/1;.018/|.8/22/1/hw !
 WIND     = ! 31/0.7/1/112
 REFVEC   =
 TITLE    = 31/-3/NAVGEM ? ~ ( 2m Temperature and 10m Wind )
 TEXT     = .8/22/1/hw
 CLEAR    = yes
 GAREA    = us
 IJSKIP   =
 PROJ     = def
 MAP      = 27/1/1 + 28/1/1
 MSCALE   =
 LATLON   =
 DEVICE   = gf|NAVGEM_tmpf_f00_tmpf.gif|900;675
 STNPLT   =
 SATFIL   =
 RADFIL   =
 IMCBAR   =
 LUTFIL   = none
 STREAM   =
 POSN     = 4
 COLORS   = 27=38:38:38;28=82:82:82
 MARKER   = 2
 GRDLBL   = 5
 FILTER   = yes

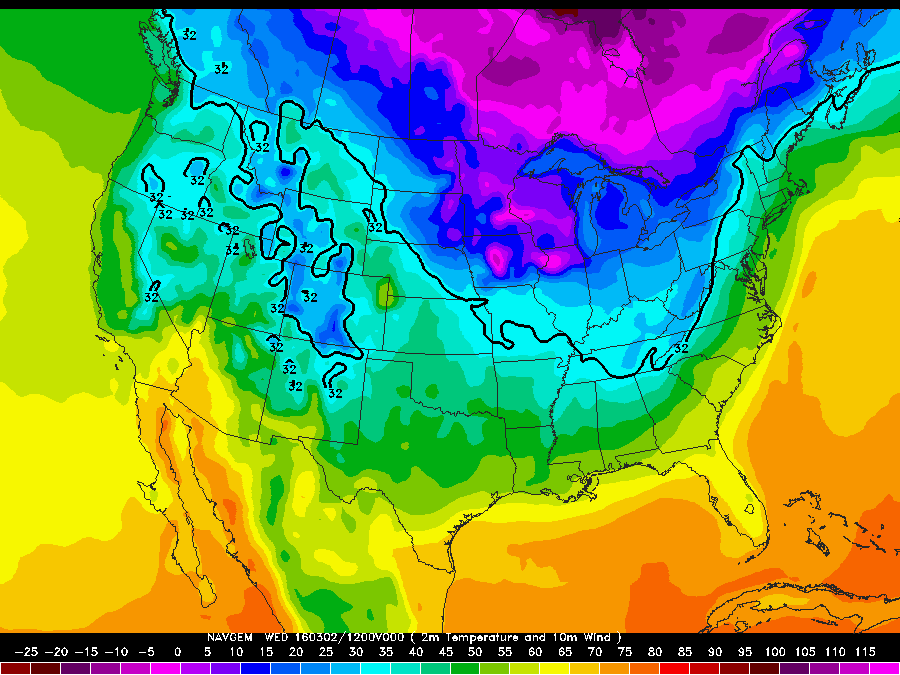

[image: Inline image 1]



Michael James
Unidata Program Center
Boulder, CO

On Wed, Mar 2, 2016 at 10:00 AM, James Murakami <tenki@xxxxxxxxxxxxxx>
wrote:

> Hi Neil,
>
> On the GEMPAK GitHub page, Michael James includes a pqact.conf for getting
> various numerical model output(starting line 416 for NAVGEM).
>
>
> https://github.com/Unidata/gempak/blob/master/ldm/etc/templates/pqact.gempak_decoders_grid
>
>
> James
>
> ----------------------------------------------
> James Murakami
> Staff Meteorologist/Student Affairs
> Department of Atmospheric and Oceanic Sciences
> University of California, Los Angeles
> 405 Hilgard Ave.
> Los Angeles, CA  90095-1565
>
>
>    e-mail: tenki@xxxxxxxxxxxxxx
> telephone: 310-825-2418
>       Fax: 310-206-5219
> ----------------------------------------------
>
> On 03/02/2016 07:49 AM, Smith, Neil R wrote:
>
> Is no one plotting the navgem?
>
> Anyone remember what the incompatible navigation issue is about?
>
>
> On Feb 29, 2016, at 5:20 PM, Smith, Neil R < <n-smith2@xxxxxxxxxxxxx>
> n-smith2@xxxxxxxxxxxxx> wrote:
>
> What’s the key to ingesting navgem?
>
> I’m using
>
> FNMOC   (^US058.{4}-GR1mdl\.0018_0056_.{5}.{4})(.{4})(.{6})(.*)
>         PIPE    /unidata/ldm/decoders/dcgrib2 -d data/gempak/logs/dcgrib2_
> navgem.log
>         -e GEMTBL=/unidata/gempak/NAWIPS/gempak/tables
>
> but getting screwy plotting results, and ingest log file entries like
>
> 160229/1637[DCGRIB 1] Grid navigation 56 incompatible with file
> data/gempak/model/fnmoc/navgem/2016022918f045_navgem.gem
>
> This is GEMPAK7 and ldm 6.12.5
>
> -Neil
> _______________________________________________
> gembud mailing list
> gembud@xxxxxxxxxxxxxxxx
> For list information or to unsubscribe,  visit:
> http://www.unidata.ucar.edu/mailing_lists/
>
>
>
>
> _______________________________________________
> gembud mailing listgembud@xxxxxxxxxxxxxxxx
> For list information or to unsubscribe,  visit:
> http://www.unidata.ucar.edu/mailing_lists/
>
>
>
> _______________________________________________
> gembud mailing list
> gembud@xxxxxxxxxxxxxxxx
> For list information or to unsubscribe,  visit:
> http://www.unidata.ucar.edu/mailing_lists/
>
