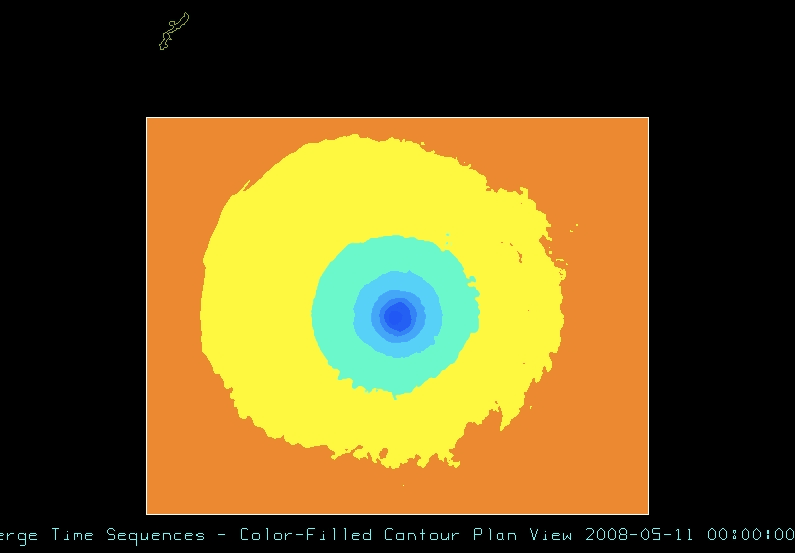

Hi Sean/Don, As it turns out, the Merge Timestep Sequences worked! (See attachment). However, as Don pointed out, it requires each timestep to be in a separate file, opened one by one, allowing only one field/display that has to be decided in advance. Perhaps if there was a way for the mergeTimeSequences function to somehow be incorporated in the Data Choosers/Data Source Type menu it would be more practical. Sean - unfortunately the files I currently have are huge - 406Mb per timestep - so probably impractical to upload at this time. But if I can obtain smaller samples I'll let you know. Paul On 11 February 2014 02:47, Don Murray (NOAA Affiliate) <don.murray@xxxxxxxx>wrote: > Paul- > > As Sean notes, there is no convention for handling this, but the > underlying IDV framework will handle grids with time varying domains. An > example of this is satellite imagery which can vary the region covered from > time to time (the old Unidata floater was used as the test case for the > code). I don't believe the Aggregate WRF Grids by Time will work, because > that relies on the underlying netCDF-Java library to do the aggregation and > I think it assumes a constant domain to work. But you could try it. > Another way to do it (although a pain) would be if you had each time step > in a separate file, would be to load all them in as single grids and use > the Grids->Time Steps->Merge timestep sequences formula to do the merge. > This bypasses the netCDF-Java aggregation. > > Don > > > On 2/10/14 7:04 AM, Sean Arms wrote: > >> Greetings Paul, >> >> We've been looking for some example files to work with using this >> concept. I do not believe there is a standard way to handle the case of >> time dependent latitude/longitude (standard as in Climate and Forecast >> standard). Would you be willing to share a few of the individual files >> for us to take a look? If so, you can upload them here: >> >> http://motherlode.ucar.edu/repository/alias/idvupload >> >> I have some ideas on this, but it will take some time to play with. >> >> Cheers! >> >> Sean >> >> On 2/9/14, 7:44 PM, Paul Graham wrote: >> >>> Hi IDV Users, >>> >>> Is it possible for IDV to aggregate grids where the horizontal domain is >>> changing position, as is the case for WRF vortex following nests? >>> >>> Thanks, >>> >>> Paul >>> _______________________________________________ >>> idvusers mailing list >>> idvusers@xxxxxxxxxxxxxxxx >>> For list information, to unsubscribe, visit: >>> http://www.unidata.ucar.edu/mailing_lists/ >>> >>> >> _______________________________________________ >> idvusers mailing list >> idvusers@xxxxxxxxxxxxxxxx >> For list information, to unsubscribe, visit: >> http://www.unidata.ucar.edu/mailing_lists/ >> > > -- > Don Murray > NOAA/ESRL/PSD and CU-CIRES > 303-497-3596 > http://www.esrl.noaa.gov/psd/people/don.murray/ > > > _______________________________________________ > idvusers mailing list > idvusers@xxxxxxxxxxxxxxxx > For list information, to unsubscribe, visit: http://www.unidata.ucar.edu/ > mailing_lists/ > -- Paul Graham Email: meteorpaul@xxxxxxxxx Mobile: 0403003784
Attachment:
Description: GIF image
